160mm Insulation Anchors

These insulation anchors are used to mechanically fix EPS (expanded polystyrene) and XPS (extruded polystyrene) boards to vertical plane.

• Installation in all substrates (categories A,B,C,D,E).

• The plastic nail reduces heat transmission (value 0.0W/K)

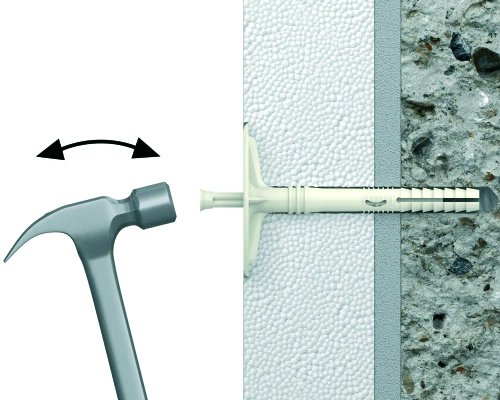

• Plastic nail reinforced with glass fibre allows fast and trouble-free installation with correct expansion of the plug.

• Expansion zone designed for low embedment depths, reducing the amount of drilling required.

• Can be used with additional KWL insulation holding plate, available in 90, 110 and 140mm flange sizes (recommended for soft insulation materials such as mineral wool).

• Optimal product parameters enable cost-saving solutions.

• Optimum plate stiffness ensures stability and excellent pull-over values

Applications

• External Thermal Insulation Composite Systems (ETICS)

• Polystyrene boards

• Mineral wool (MW) boards

• Light wood wool building boards

• Polyurethane boards

• Wood fibre boards

• Lightweight recycled panels



These Products will not work as Secondary Fixings for Insulated Plasterboard Products
